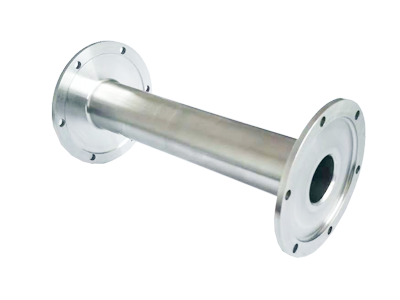

[BHH diaphragm coupling]
High speed diaphragm couplingDiaphragm coupling
- able to adapt to high speed rotation;
- Easy to install;
- Long service life;
-The moment of inertia is small and the absorption capacity is strong;
-maintenance free;
-The tolerance of the finished keyway shaft hole is H7, and the keyway tolerance is in accordance with the standard JS9;
-The dynamic balance level is 1.0;
- Special structure can be designed according to customer requirements;
- Coupling material can be selected according to customer requirements;
-The dimensions in the figure can be made according to customer requirements; other technical parameters can be consulted by Bnk Technology Department;
|
Coupling model |
Nominal torque (Nm) |
Peak torque (Nm) |
Maximum required speed (rpm) |
A(mm) |
C(mm) |
F(mm) |
E(mm) |
L=2*F+E |
|
BHH90 |
300 |
420 |
70000 |
90 |
24 |
40 |
60 |
140 |
|
BHH120 |
1000 |
1700 |
60000 |
120 |
40 |
50 |
70 |
170 |
|
BHH150 |
2000 |
3500 |
50000 |
150 |
50 |
60 |
80 |
200 |
