[BPZ diaphragm coupling]
diaphragm couplingDiaphragm coupling
-Suitable for low speed mills, cement machinery, and other transmission mechanisms;
-Strong absorption capacity, large carrying capacity and impact resistance;
-It can replace the laminated diaphragm disc coupling, and the coupling is analyzed by ANSYS with good reliability;
-Special structure can be designed according to customer requirements;
-Coupling material can be selected according to customer requirements;

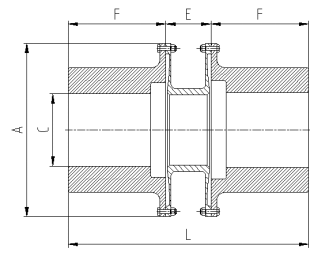

-The dimensions in the figure can be made according to customer requirements; other technical parameters can be consulted by Bunker Technology Department;
|
Coupling model |
Nominal torque (KNm) |
Peak torque (Nm) |
Maximum required speed (rpm) |
A(mm) |
C(mm) |
F(mm) |
Emin (mm) |
|
BPZ770 |
538.0 |
807.0 |
1000 |
770 |
300 |
370 |
500 |
|
BPZ960 |
750.0 |
1125.0 |
700 |
960 |
|
|
900 |
|
BPZ1150 |
1275.0 |
1700.0 |
600 |
1150 |
|
|
1000 |
|
BPZ1350 |
1575.0 |
1969.0 |
500 |
1350 |
|
|
1000 |
|
BPZ1850 |
1950.0 |
2840.0 |
400 |
1850 |
|
|
1000 |
